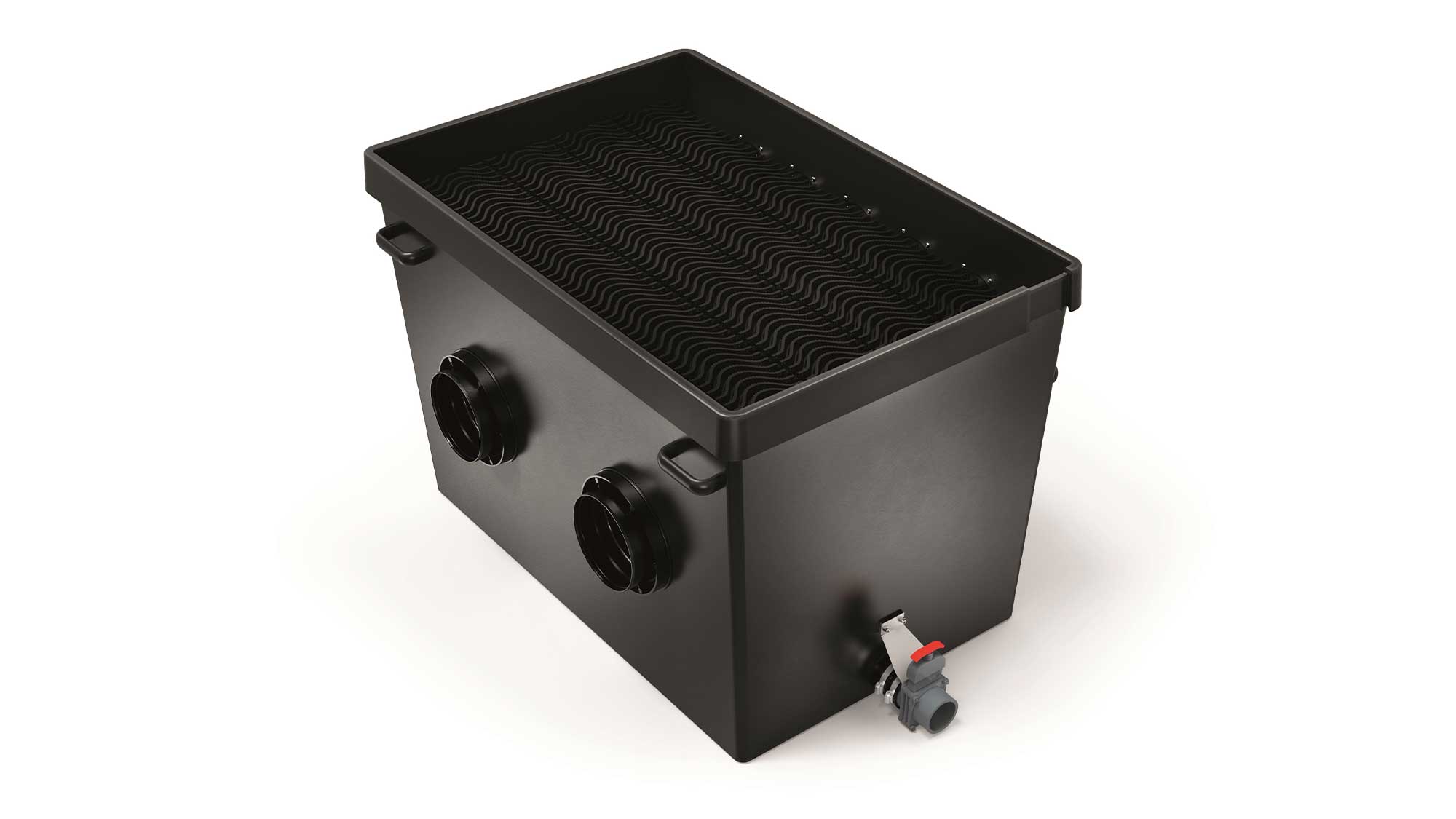

The Oase ProfiClear Premium XL Pump-Fed Discharge Module is a biological filter designed specifically for use with the ProfiClear Premium DF-XL Pump-Fed OC drum filter system.

It can be connected either directly to the drum filter module, or more typically, to the last in a series of up to three ProfiClear Premium Moving Bed Modules in between. Filtered water is return to the pond via two 110mm connections.

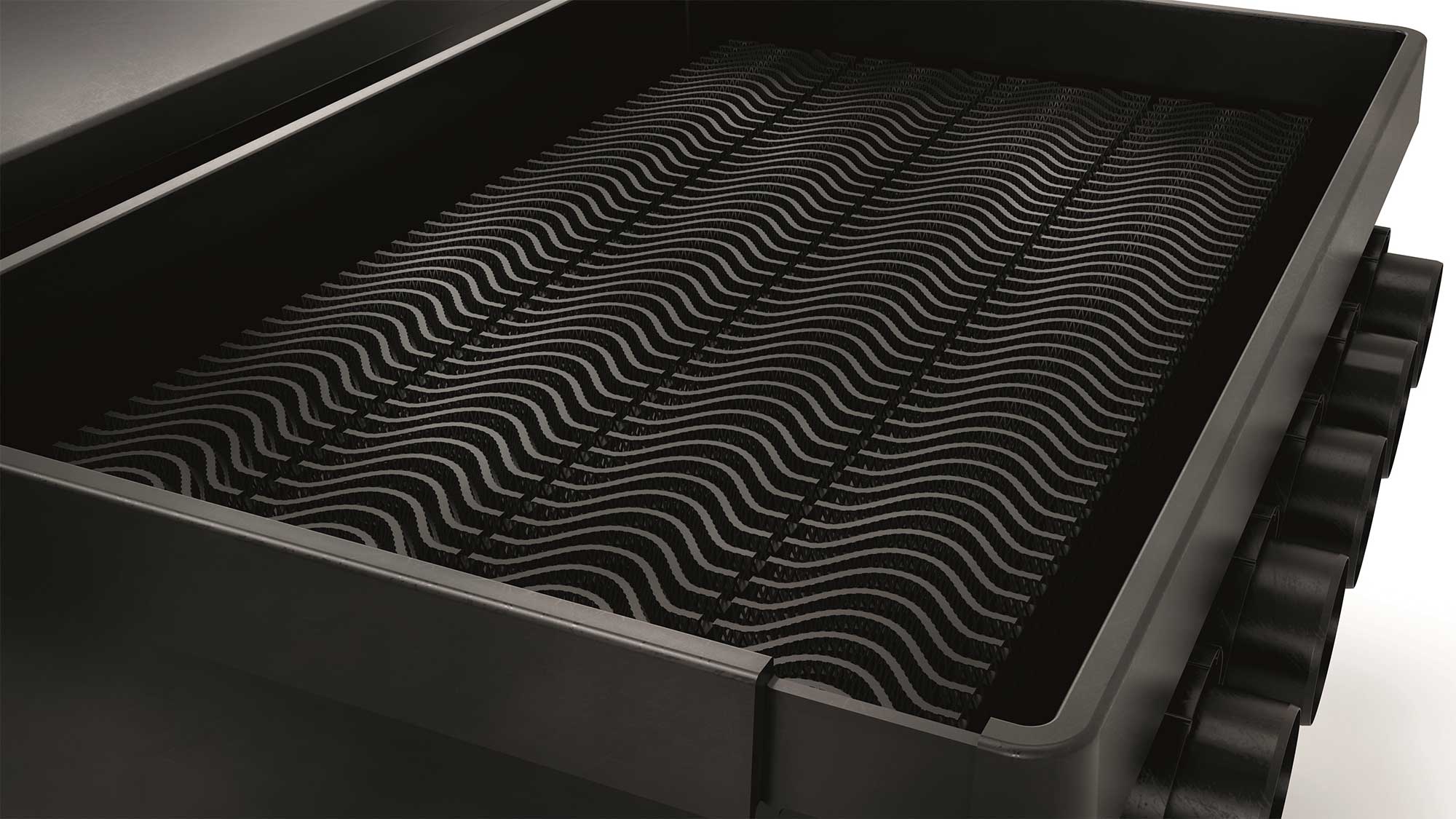

This module contains ‘Clearwave Blocks’ – high surface area biological filter media structures colonised by bacteria that break down ammonia less toxic nitrite and then to harmless nitrate. An in-built aeration system provides a constant supply of oxygen to bacterial colonies, maximizing their growth and capacity for processing dissolved organic waste.

The ProfiClear Premium XL Pump-Fed Discharge Module has integrated aeration. It should be connected to an AquaOxy 1000 to provide a steady supply of oxygen to bacteria upon the clearwave filter media blocks.

The ProfiClear Premium XL Pump-Fed Discharge Module has the following specifications:

• Compatible with the ProfiClear Premium XL Pump-Fed Drum Filter system
• Biological filter module with ‘Clearwave Block’ media
• Integrated aeration, fed by an AquaOxy 1000 (supplied separately)
• Inlet connections: 2x 180mm (to main filter or last moving bed module)

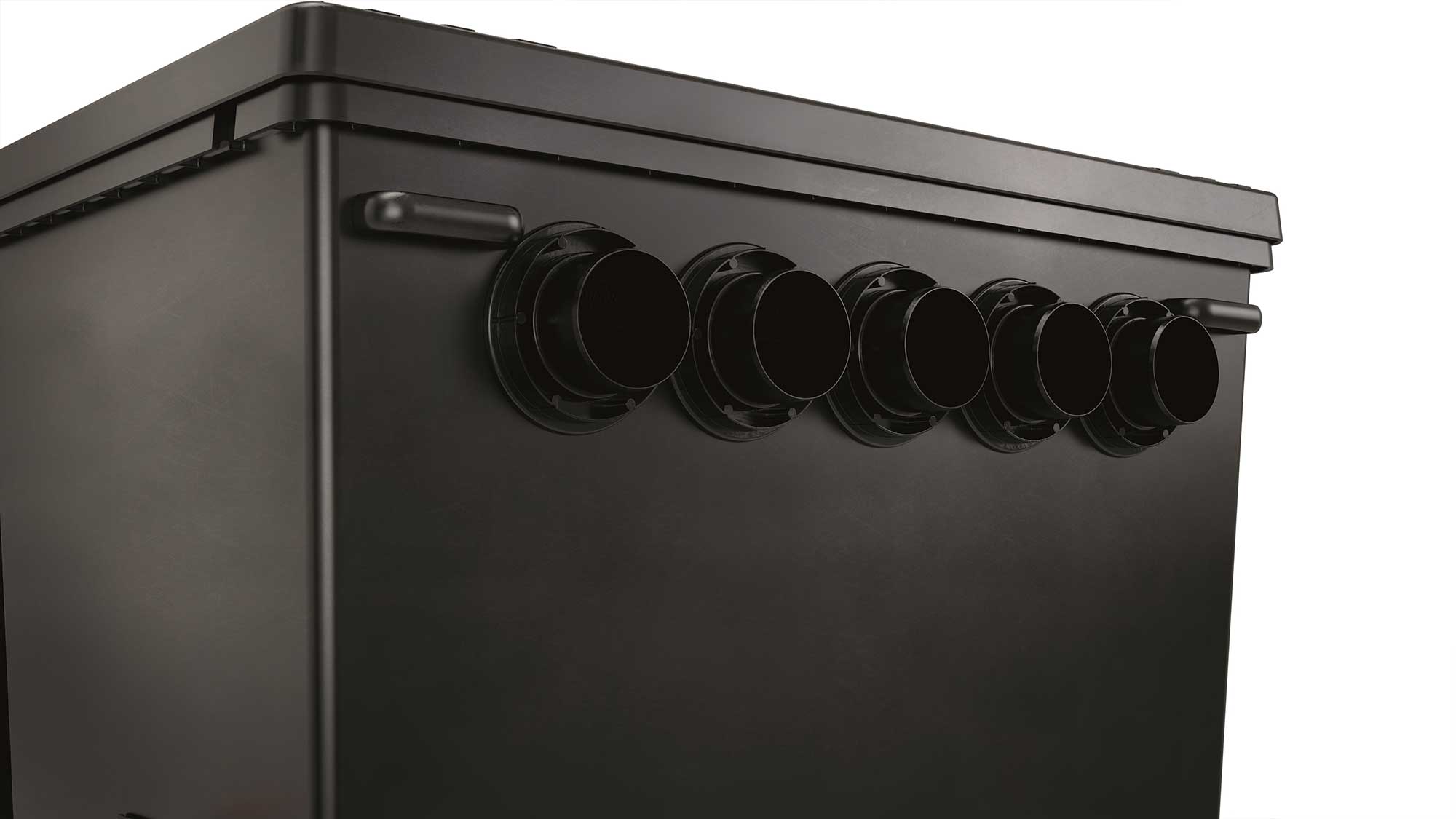

• Outlet connections: 5x 110mm
• Minimum flow rate: 25,000 litres / hour
• Maximum flow rate: 50,000 litres / hour
• Integrated slide valve drain: 75mm
• Dimensions: 1330 x 875 x 820mm
• Guaranteed for 2 years (extendable to 3 years)
